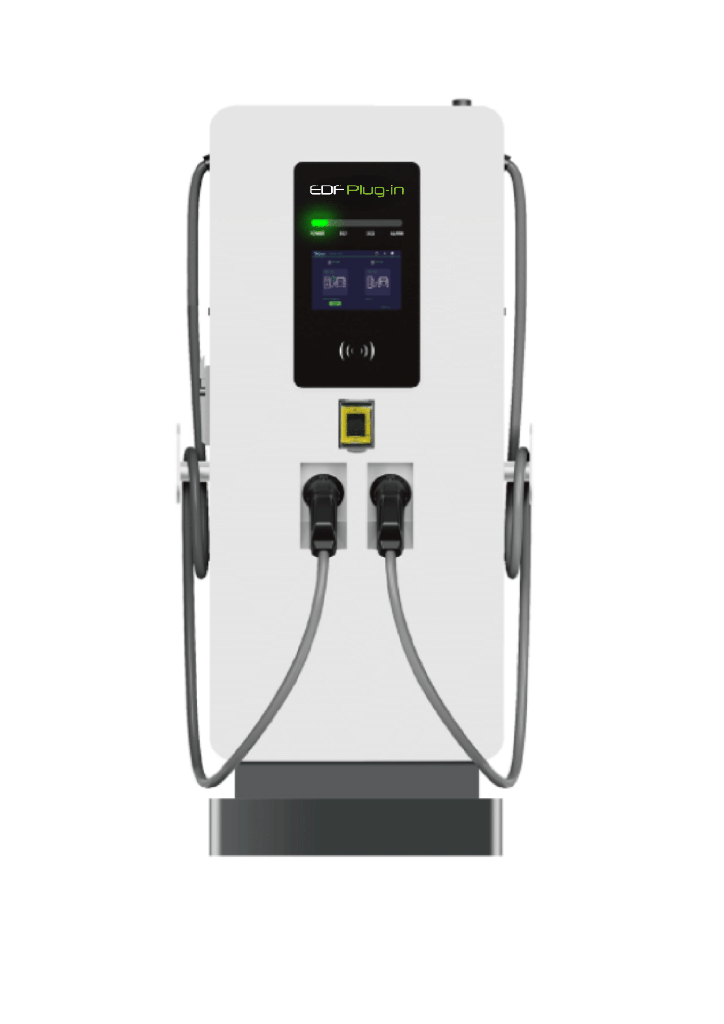

DC Charging station / 60 kW / 2x CCS2

https://www.edfplugin.com/web/image/product.template/15023/image_1920?unique=8da86fe

Charge fast, move even faster! Discover our DC charging stations - lightning-fast charging for your electric vehicle. Ready to hit the road in the blink of an eye!

0.00 zł 0.0 PLN 0.00 zł

0.00 zł

Contact us to find out the details

    This combination does not exist.

    Terms and conditions
     Warranty 24 months

    Specifications:

    • Input Rating: AC400V(±15%), 50/60 Hz
    • Max. output current: 200A
    • Max. input power: 60 kW - 3 fazy
    • Display: TAK - 10.1' LCD
    • 2 charging plugs CCS2
    • Connection to the network via WIFI, Ethernet, 4G, OCPP 1.6J, OCPP 2.0
    • Communication: Ethernet,WIFI,3G/4G
    • Charging activation: RFID,OCPP,QR Kod, Aplikacja
    • Emergency Stop Button: YES
    • Payments - Aplikacja / RFID / Czytnik kart bankowych
    • Working temperature: -30°C ~ 50°C
    • Cooling: Air cooling
    • Protection level: IP55
    • Protection: Over current, Under voltage,Over voltage,Residual current,Surge protection,Short circuit,Over temperature,Ground fault
    • Standards: EN IEC 61851-1:2019;EN 61851-23:2014;EN 61851-24:2014;EN IEC 61851-21-2:2021


    What is the CCS plug?


    CCS is a universal connector enabling both AC (alternating current) and DC (direct current) charging. It is an extension of Type 1 and Type 2 socket standards, supplemented with additional pins.
